ITC PA AMPLIFIER SYSTEM

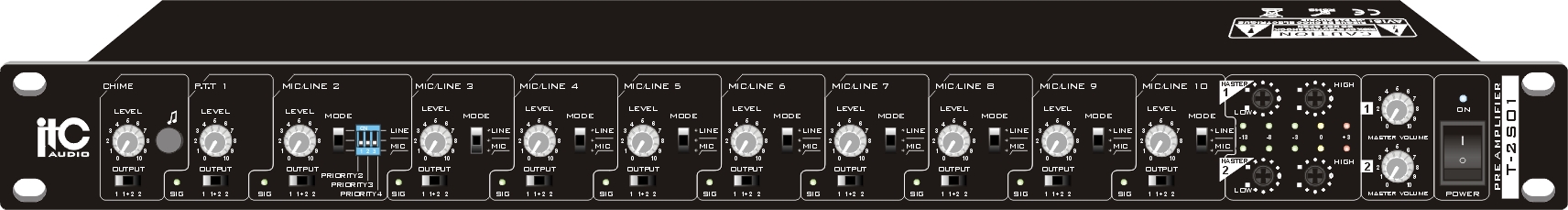

Features
* 2 channel mixer of 10 inputs
* Remote paging console T-319 as mic 1 with highest input priority
* Mic 2-4 with VOX selector over inputs 5-10 and phantom power
* All the 10 inputs with mic, line and high pass filtering selector
* Inputs 7-10 either by XLR mic inputs or by dual RCA line inputs
* Dual channel XLR line outputs
* All inputs include inputs1-10, MIC (remote paging console T-319), chime could be selected to hav

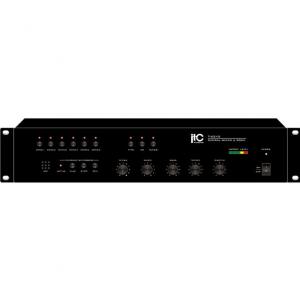

The 4 channel mixer amplifier range is design with two power outputs: 4x60W and 4x120W.
The inputs and outputs can be matrix selected, thus it is a high integrated 4 channel audio matrix system solution with Mp3 player for hotel, shopping mall, sports center, entertainment center, etc.
Each inputs could be easily designed to different four zones by front panel selector, moreover each inputs are supplied with separate bass, treble and volume control for precise sound effect for each

Feature

* Mixer amplifier for paging and background music system
* Rated power 120W
* 2U rack mount (less than 350W) and 3U rack mount design
* 70V, 100V and low impedance 4-16ohm speaker output
* Three balanced Mic input
* Mic 1(phone jack) with VOX priority and VOX level on front panel




Features

* Remote paging console with input priority over Mic1 and siren/chime excep t fo r EM C input and TE L input
* Condenser microphone type
* 2/4 tone selectable pre-announcement chime
* Each 5 zone, all zones, talk and chime functional buttons.
* Volume control over chime, Mic and master
* 10 segment LED amplifier output level meters
* DC power socket and DC 24V input
* Extra DC power supply is needed when co
