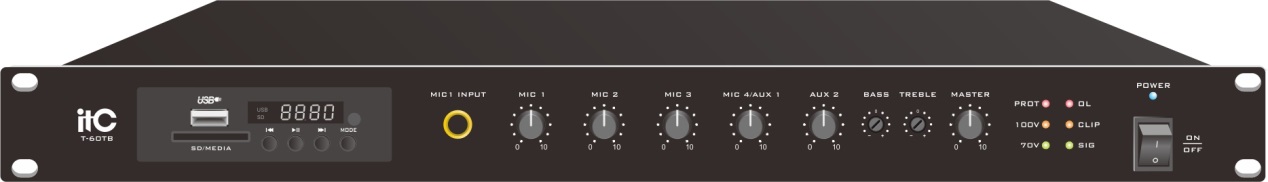

T-120TB/T-240TB Amplifier with MP3/TUNER/Bluetooth(Phone Jack Mic Input)
Part no : ITC T-120TB/ T-240TB
FunctionsWith mp3/TUNER/Bluetooth functions.Apply in small places where need Public address systemFeaturesStandard rack mounted design (1U), SMT designWith mp3/TUNER/Bluetooth module ， Digital screen displaying the current music from USB 。With mp3/TUNER/ Bluetooth remote control function 。1EMC input ， 2AUX input ， 4MIC input 。Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2 。Each channel has volume control function, master volume control and bass/treble tone control 。With level indicator, overload and protection indicator 。With h igh temp, overload & short-circuit protection.2 output modes ： 100V 、 70V （ non- Bridged mode ）High energy -efficient switching power supply and high-efficient power amplifierWide voltage power supply: 180 V - 240 V can work normally.SpecificationsRear Panel
| Product Model | T-240TB | T-120TB | T-60TB |
| Weight | 5.1Kg | 4.5Kg | 4.1Kg |
| Dimension | 484×260×44mm | ||
| The Input Sensitivity And Impedance | MIC1, 2, 3, 4input:5mV/600Ω Unbalanced 6.3 connector | ||
| Power Consumption | 350W | 180W | 100W |
| when amplifier turned on, infinitely variable speeds | when amplifier turned on, infinitely variable speeds | AUX1, 2 input:350mV/10KΩ Unbalanced RCA connector | |
| Heat Dissipation | Flank in and rear panel out to force fan cooling, fan starts | ||
| Channel Crosstalk Attenuation | ≥ 50dB | ||
| Mute Control | EMC has highest priority | ||
| THD | Less than 0.5%( at 1KHz, 1/3 rated power) | ||
| SNR | MIC1, 2, 3:66dB; AUX1, 2:80dB | ||
| Frequency Response | 50Hz~16KHz (+1dB, -3dB) | ||
| Tone | Bass: ±10dB at 100Hz | ||
| The Output Sensitivity & Source Impedance | MIX OUT:1000mV/470Ω Unbalanced RCA connector | ||
| Output Power | 240W | 120W | 60W |
| Output Terminal | 70V, 100V | ||
| Protection | Over-heat, overload, short circuit, etc | ||
| Power Supply | ~220-240V 50/60Hz | ||
